How to Build a Gallery Rail the Right Way
Struggling to recreate that gallery rail you saw on TikTok? There’s a reason it hasn’t been working.
Those videos are great for views—but not so great at showing the correct hardware. This guide walks you through the right way to build a gallery rail using real parts that actually fit together. It’s easier than you think, and anyone can do it.
No More Fighting Threads

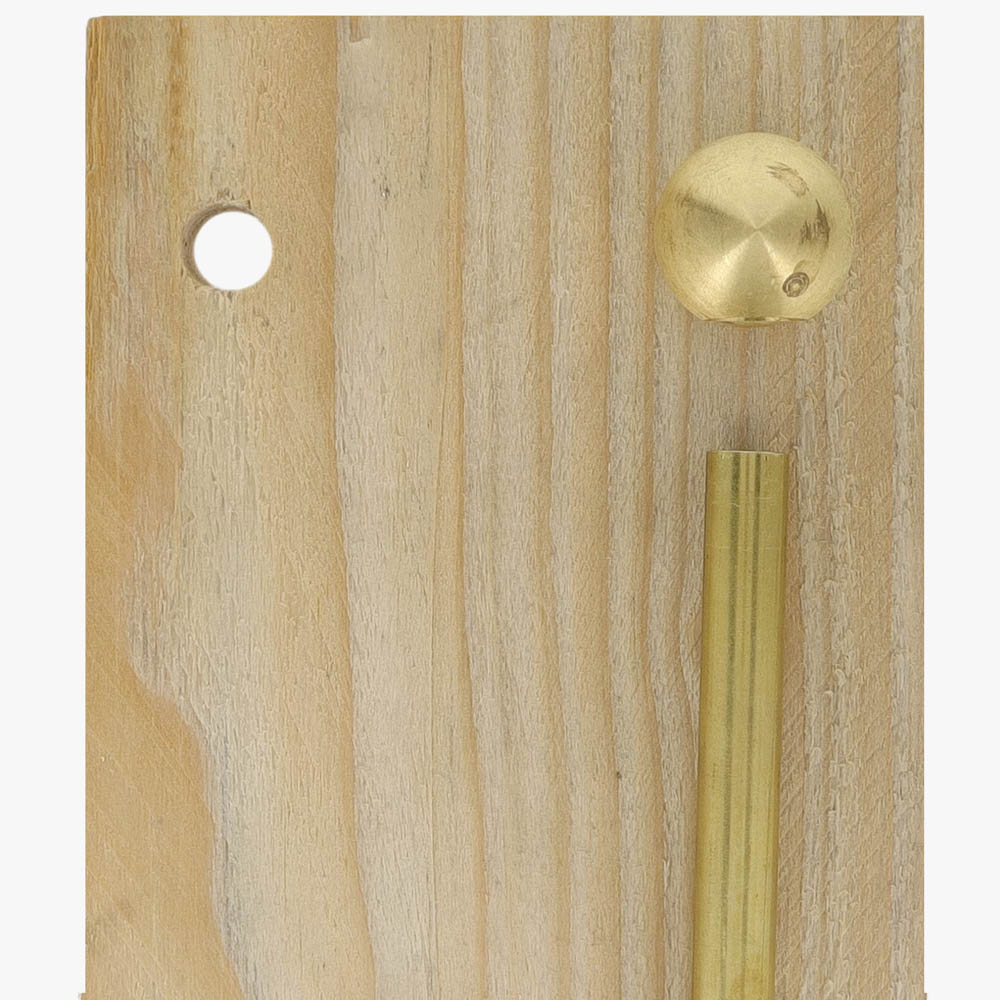

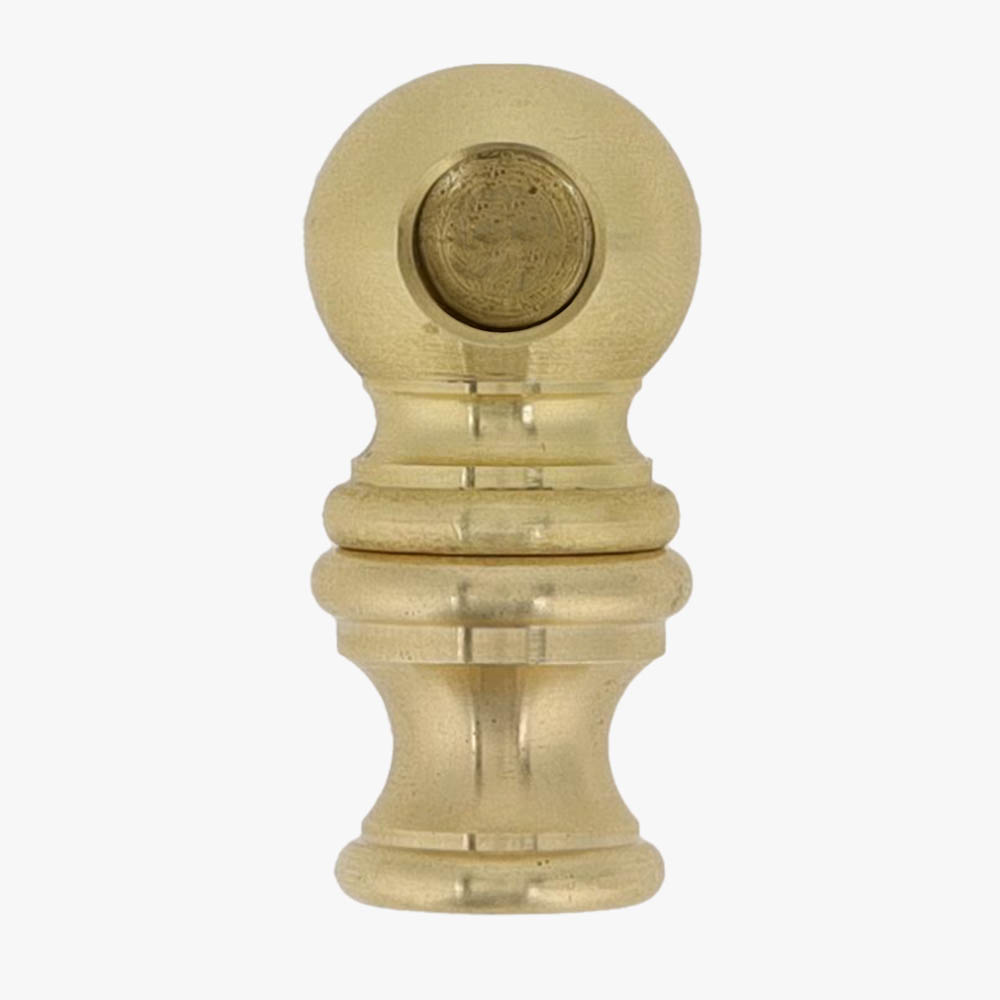

One of the simplest ways to build a gallery rail is by using slip-type armbacks. These let you size the rail by cutting the tubing to length—no threading required.
A basic rail can be built using two slip-type armbacks (one on each end) and a smooth brass tube in the middle.
Building Longer Rails
For longer spans, you can add support and style with T-Slip-Type Armbacks. These allow the tube to slip through and pass into the next armback for a continuous, aligned rail.
- T-Slip Armback (example: AB391S)
Making Corners
To create a clean ninety-degree corner, use a corner slip-type armback:
- Corner Armback (example: AB399S)
Mounting the Rail

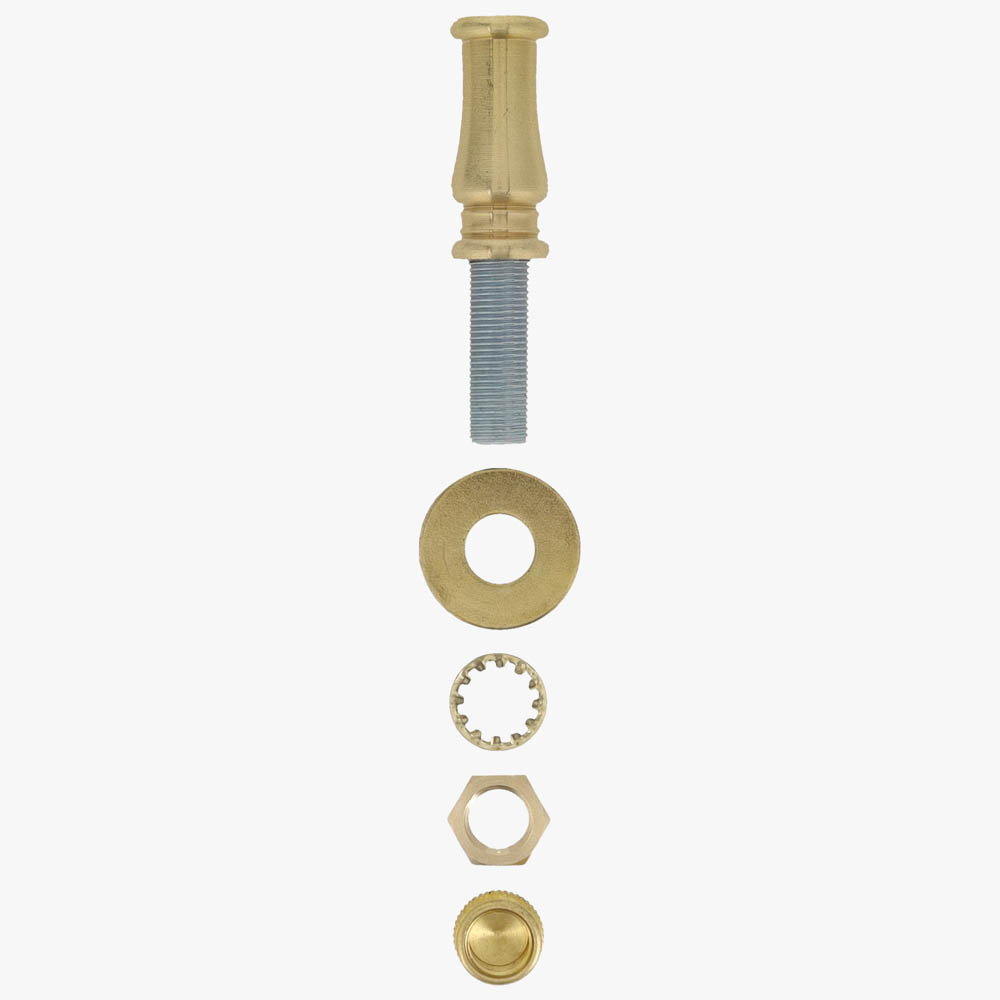

All of these armbacks are threaded on the bottom only. This allows you to:
- Thread nipples into the bottom to secure the rail to a shelf, bar, or tabletop.
- Add height by using a threaded or slip-type neck if needed.
Parts & Tools
Gallery Rail Parts:
https://grandbrass.com/diy-lighting-kits-do-it-yourself/gallery-tabletop-and-bar-top-railings/
Pipe Cutter (Walmart):
https://www.walmart.com/ip/Hyper-Tough-1-8-inch-to-7-8-inch-Mini-Tubing-Cutter-4018V/508897045
This method avoids threading entirely and gives you a clean, functional, customizable gallery rail—no TikTok hacks required.
